Aluminum Plate Machining Allowance: Buyer Guide

Aluminum plate machining allowance is the intentional extra material left on a plate blank so machining can produce the final size, geometry, and surface condition. It must cover stock variation, cutting effects, setup, facing, edge cleanup, and process uncertainty without becoming an arbitrary oversize margin.

A practical aluminum plate machining allowance is developed from the finished drawing and machining plan. Buyers should specify the required blank condition separately from final-part tolerances, because mill plate, saw-cut blanks, and completed machined parts are different deliverables.

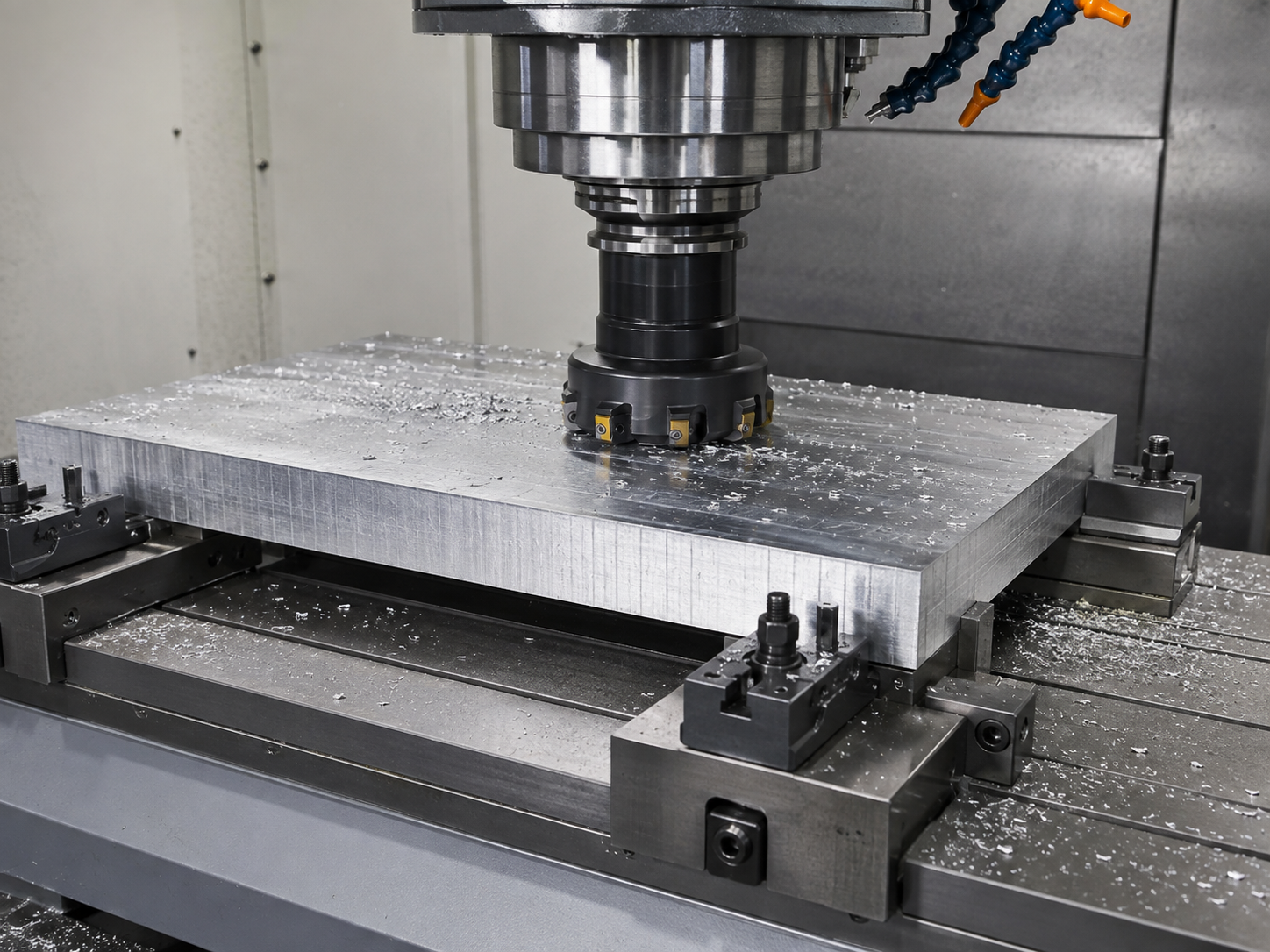

CNC face milling with aluminum plate machining allowance

Define Machining Allowance

Allowance is directional. Extra thickness may be needed for facing both sides, while extra length and width may be needed for saw cleanup, squaring, workholding, or profile finishing. State whether aluminum plate machining allowance applies per face, per edge, or to the total blank dimension.

Do not confuse aluminum plate machining allowance with tolerance. Allowance is planned stock for removal; tolerance defines permitted variation around a dimension. A blank can contain adequate allowance yet still be unacceptable because it is undersize at one corner, damaged, excessively bowed, or outside the ordered cut tolerance.

Start From the Finished Part

Review final thickness, length, width, parallelism, flatness, surface finish, datum scheme, holes, pockets, and cosmetic zones. Then map each machining operation and setup. Aluminum plate machining allowance should support that route and the inspection points between roughing and finishing.

A heavily pocketed part, sealing face, long rail, thin frame, or two-sided precision component may need a different blank strategy from a simple rectangular plate. Ask the machine shop to approve the blank before purchase when the part has high material removal or tight released-state geometry.

Separate Mill and Cut Tolerances

Mill thickness tolerance, plate flatness, and saw-cut length or width tolerance are independent characteristics. An aluminum plate machining allowance that merely equals the nominal mill tolerance may leave no stock for cleanup at the high or low points of a real surface.

The aluminum plate machining allowance purchase order should name the product standard, alloy, temper, nominal plate size, ordered tolerance, and cut method. ASTM B209/B209M covers specified aluminum-alloy sheet and plate products, while final machined-part requirements remain on the drawing and machining specification.

Account for Flatness and Stress

Rolled plate contains a residual-stress state that can change as material is removed. Fixturing can temporarily pull a bowed blank flat, and the part may move after clamps are released. Aluminum plate machining allowance cannot by itself prevent distortion caused by material condition, asymmetric removal, heat, or poor process planning.

NASA technical material describes stress-relief stretching of some alloy plate to improve flatness and reduce machining warpage. Use the NASA aluminum fabrication reference as general background, then verify the exact temper and property requirements in the governing material specification.

Aluminum plate stock before machining to final size

Plan Facing and Edge Finishing

If both broad faces require cleanup, identify stock per face and the intended final thickness. Edge allowance should cover saw marks, squareness, heat-affected or damaged zones where relevant, and workholding tabs only when the programmed process uses them.

An aluminum plate machining allowance should be large enough for the planned operation but not so large that it creates unnecessary cycle time, heat, chip volume, or distortion risk. The responsible manufacturing engineer should set the value from machine capability, blank data, and part geometry.

Control Fixturing and Sequence

Plan the aluminum plate machining allowance through roughing and finishing so the work remains supported and material removal is reasonably balanced where geometry permits. Low-force workholding, clean support points, suitable cutting parameters, sharp tooling, coolant strategy, and an unclamped inspection step can influence the released result.

The table separates blank risks from machining controls. Aluminum plate machining allowance provides recoverable stock, but excessive clamping force or one-sided removal may consume that advantage by creating a part that measures correctly only while restrained.

Blank risk	Why allowance is needed	Additional control
Thickness variation	Leaves stock for facing	Map thickness before setup
Saw-cut variation	Leaves stock for edge cleanup	Specify cut tolerance and squareness
Initial bow or twist	High points may consume stock	Define free-state flatness
Residual stress movement	Geometry can change after removal	Plan balanced roughing and release checks
Surface damage	Cleanup may require extra depth	Set protected faces and acceptance zones

Inspect the Blank and Part

At receipt, verify the aluminum plate machining allowance by measuring blank thickness at enough locations to understand variation, then check length, width, diagonals, flatness, surface damage, cut edge, alloy, temper, and traceability. Record whether measurements are restrained or free-state.

After roughing, release the part according to the machining plan and inspect the datums that control finishing. The final inspection should verify drawing requirements, not the original aluminum plate machining allowance. Keep blank and finished-part records separate for root-cause analysis.

Define final datums, size, flatness, parallelism, and finish.
State allowance per face or total blank dimension.
Add mill, cut, and machining variation without double counting.
Confirm alloy and temper suit the machining plan.
Inspect the blank in a defined restrained or free state.
Plan roughing, release, rest, and finishing checks.
Approve aluminum plate machining allowance with the machine shop before ordering.

Prepare a Complete RFQ

A complete RFQ states standard, alloy, temper, plate thickness, blank length and width, cut method, dimensional tolerance, flatness requirement, surface condition, protective film where applicable, certificate, marking, packaging, and intended machining. Attach the finished drawing when possible.

Review the aluminum plate product range and the aluminum plate flatness guide before setting aluminum plate machining allowance. These pages connect the blank specification with product form and the released-state geometry risk.

Frequently Asked Questions

What is aluminum plate machining allowance?

It is intentional extra stock on a plate blank that will be removed to achieve final dimensions, datums, edge condition, and surface finish.

How much machining allowance should be added to aluminum plate?

There is no universal amount. Set it from mill and cut tolerances, measured flatness, facing and edge operations, workholding, part geometry, machine capability, and required final tolerances.

Should machining allowance be added to both plate faces?

Add stock to every face that the process must machine. State whether the drawing gives allowance per face or total oversize to prevent a twofold interpretation error.

Why does aluminum plate warp after machining?

Residual stress, asymmetric removal, heat, thin geometry, initial flatness, clamping force, and machining sequence can all contribute. Extra stock alone does not prevent movement.

Is machining allowance the same as dimensional tolerance?

No. Allowance is material intentionally left for removal. Tolerance is the permitted dimensional variation for the blank or finished part.
